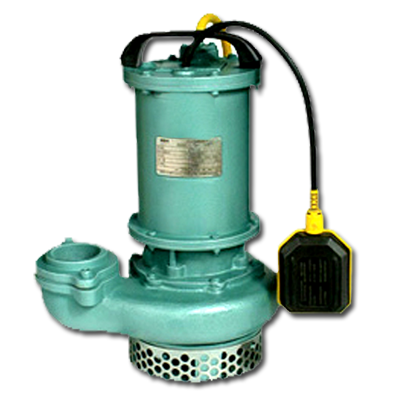

Portable Submersible Pump

CONSTRUCTIONAL FEATURE :

Supply in standard graded C.I. Construction with C.I. Impeller with double mechanical seal and shredding device having free passage of particles in suspension.

MOTOR :

Available in both single phase and three phase squirrel cage induction dry motor with class ‘F’ insulation and IP 68 protection. AVAILABLE ON REQUEST :

Pump with S.S. Impeller.
Pump with Aluminium / S.S. construction
Agitator
Float

APPLICATIONS :

MBH Portable Submersible Pumps are most economical and reliable for Dewatering, Storm Water, Construction Site etc.

ITEM	QTY	PART NAME
1	1	Pump Handle
2	2	Drain Plug
3	1	Top Cover
4	10	Hex Bolt
5	1	Upper Bearing Circlip
6	1	Upper Ball Bearing
7	1	‘O’ Ring for Top Cover
8	6	Hex Nut
9	1	Rotor
10	2	End Lamination
11	1	Stator Stamping
12	1	Stator Body
13	6	Hex Nut
14	1	Lower Internal Circlip
15	1	Lower Ball Bearing
16	1	Mechanical Seal Upper
17	1	Oil Chamber
18	1	Mechanical Seal Lower
19	6	Allen Cap Screw
20	1	Impeller
21	1	Strainer
22	1	Spirel Plate
23	1	Bottom Plate
24	1	‘O’ Ring For Seal Cover
25	1	‘O’ Ring For Seal Chamber
26	1	Volute
27	1	Rubber Gasket
28	1	Flange
29	4	Hex Bolt
30	1	Cable Gland
31	2	Allen Cap Screw
32	1	Cable

TECHNICAL SPECIFICATIONS :

Head           :   Upto 32 mtr.
Capacity Q   :    Upto 2500 LPM
HP                 :    0.5 to 10 HP

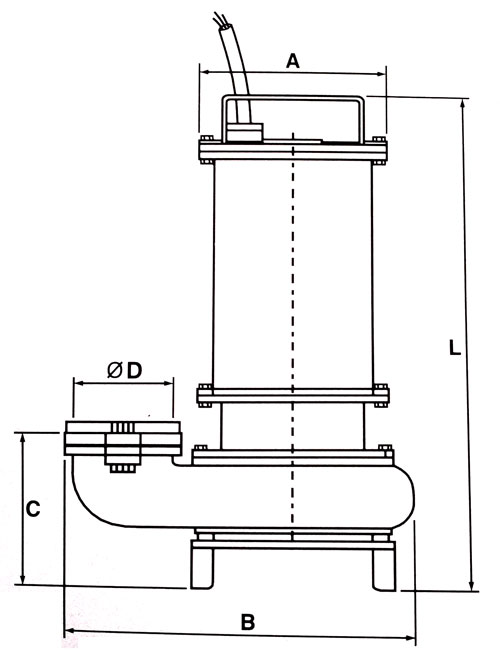

Model Table

MODEL	A	B	C	D	L	WEIGHT CI	WEIGHT AL
PSS-0.5	148	220	134	50	414	24	12
PSS-1.0	168	307	154	50	452	32	15
PSS-1.5	168	307	154	50	477	36	17
PSS-2.0	182	307	151	75	524	41	20
PSSF-0.5	148	220	134	50	414	25	13
PSSF-1.0	168	307	154	50	452	33	16
PSSF-1.5	168	307	154	50	477	37	18
PSSF-2.0	182	307	151	75	524	42	21
PST-0.5	148	220	134	50	414	24	12
PST-1.0	168	307	154	50	452	32	15
PST-1.5	168	307	154	50	477	36	17
PST-2.0	182	307	151	75	524	41	20
PST-3.0	182	307	151	75	524	42	22
PST-5.0	212	330	153	75	534	58	32
PST-5.0 A	212	330	153	75	555	58	32
PST-5.0 C	212	346	140	65	575	58	32
PST-7.5	247	435	173	100	590	92	45
PST-7.5 A	247	435	173	100	608	92	45
PST-7.5 C	247	368	160	65	625	92	45
PST-10	280	447	193	100	674	135	70
PST-10 A	280	447	200	10	690	135	70
PST-10C	247	368	180	65	690	135	70

MODEL	hp/kW	Ph.	DEL. Size in mm		HEAD IN MTR.																			CABLE (in sq. mm)
MODEL	hp/kW	Ph.	DEL. Size in mm		4	5	6	7	8	9	10	11	12	14	16	18	19	20	21	22	24	25	26
PSS-0.5	0.5/0.37	1	50	D I S C H A R G E I NL P M	225	220	210	200	190	150	110	70	50											1 x 4 x 1.5
PSS-1.0	1/0.75	1	50			490	445	385	340	260	190	100												1 x 4 x 1.5
PSS-1.5	1.5/1.1	1	50			520	475	440	400	345	260	190	100											1 x 4 x 1.5
PSS-2.0	2.0/1.5	1	75			650	600	560	525	480	430	340	250	150										1 x 4 x 1.5
PSSF-0.5	0.5/0.37	1	50		225	220	210	220	190	150	110	70	50											1 x 4 x 1.5
PSSF-1.0	1/0.75	1	50			490	445	385	340	260	190	100												1 x 4 x 1.5
PSSF-1.5	1.5/1.1	1	50			520	475	440	400	345	260	190	100											1 x 4 x 1.5
PSSF-2.0	2/1.5	1	75			650	600	560	525	480	430	340	250	150										1 x 4 x 1.5
PST-0.5	0.5/0.37	3	50		225	220	210	200	190	150	110	70	50											1 x 4 x 1.5
PST-1.0	1/0.75	3	50	D I S C H A R G EI NL P M		490	445	385	340	260	190	100												1 x 4 x 1.5
PST-1.5	1.5/1.1	3	50			520	475	440	400	345	260	190	100											1 x 4 x 1.5
PST-2.0	2/1.5	3	75			650	600	560	525	480	430	340	250	150										1 x 4 x 1.5
PST-3.0	3/2.2	3	75					700	650	600	550	500	450	400	250	160	140	80						1 x 4 x 1.5
PST-5.0	5/3.7	3	75				910	850	840	800	760	720	680	600	540	490	460	430	300	200				1 x 4 x 1.5
PST-5.0A	5/3.7	3	75			1300	1200	1150	1100	1000	950	900	600	400	200
PST-5.0C	5/3.7	3	65										900	830	800	700	660	620	580	520
PST-7.5	7.5/5.5	3	100				1360	1350	1320	1275	1250	1200	1130	990	750	580	530	480	330	200
PST-7.5A	7.5/5.5	3	100			2000	1900	1800	1700	1600	1500	1400	1200	600	300
PST-7.5C	7.5/5.5	3	65														1095	1035	962	920	775	645	509
PST-10	10/7.5	3	10								1800	1700	1600	1500	1350	1150	1100	1050	900	800	550	480	400
PST-10A	10/7.5	3	100					2500	2200	2100	2000	1900	1800	1600	1400	1000	700	400
HEAD IN MTR.					22	24	25	26	27	28	29	30	31	32
PST-10C	10/7.5	3	65		1160	1100	1050	990	960	940	850	780	690	500
